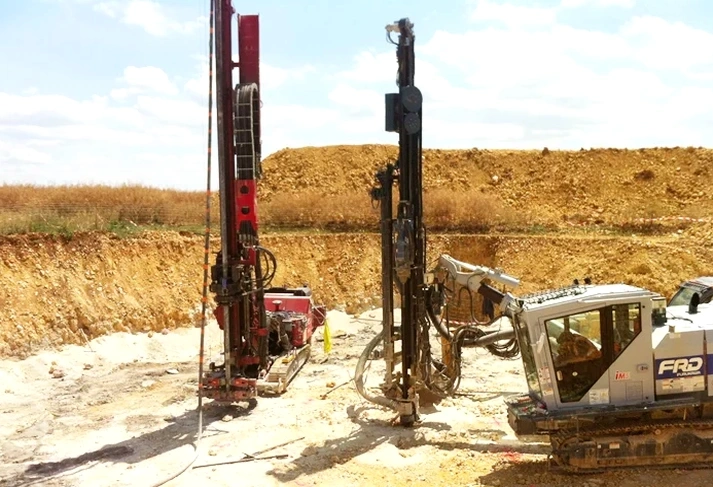

Grouting Design & Injection Systems for Newark Soil Conditions

It depends entirely on the grain-size distribution and the treatment objective. In the loose granular fill typical of downtown Newark, compaction grouting with a stiff, low-slump mortar (1-3 inches slump) densifies the matrix and lifts settled footings. Where groundwater cutoff is required—common in the Ironbound district with its high water table—permeation grouting with microfine cement or chemical grout creates a continuous curtain. In the deep, soft organic silts of the meadow mat, neither permeation nor compaction grouting performs reliably; jet grouting is the preferred method, forming soilcrete columns that transfer load to the underlying glacial till. We always run a groutability test on Shelby tube samples before specifying the method.

For a complete laboratory grouting design package—including grain-size analysis, groutability testing, mix design optimization, and a field trial plan with QA/QC protocols—our fees typically range from US$1,080 to US$3,690. The final cost depends on the number of soil horizons requiring treatment, the complexity of the grout chemistry (e.g., multi-component chemical grouts vs. single-component cement grouts), and the extent of field monitoring required. A baseline project involving one injection horizon and standard cementitious grout falls at the lower end, while a multi-level jet grouting program with chemical additives across variable fill and organic deposits approaches the upper bound.

At minimum, we perform a complete particle-size distribution (sieve and hydrometer, ASTM D6913/D7928) on every distinct soil horizon, plus Atterberg limits for cohesive layers. The groutability ratio is calculated from the d15 of the soil and the d85 of the proposed grout, measured by laser diffraction. We also run a Marsh funnel viscosity test and a 3-hour bleed test (ASTM C940) on trial mixes. For chemical grouts, gel time curves at in-situ temperature and groundwater pH are developed. When structural strength is required, unconfined compression specimens are cast and tested at 3, 7, and 28 days.

We have designed grouting programs within 3 feet of occupied historic buildings in Newark's Four Corners district. The key control parameter is injection pressure, limited to approximately 1 psi per foot of overburden to prevent hydrofracture or surface heave. Real-time pressure monitoring at the pump and at observation points between the injection location and the structure allows immediate shutdown if pressure exceeds the pre-set threshold. For compaction grouting near sensitive structures, we use a staged injection sequence with smaller initial volumes and confirmatory elevation surveys after each pass.
