Raft and Mat Foundation Design in Newark, NJ

Q: What does a raft/mat foundation design cost in Newark?

For a typical mat foundation geotechnical evaluation in Newark—including two borings, lab testing, and the design report—the cost runs between US$970 and US$4,440, depending on mat area and the number of soil layers analyzed.

Q: How deep do you investigate for a mat foundation in the Meadowlands?

We typically extend borings and CPT soundings to at least twice the mat width below the bearing elevation, or until we hit competent glacial till or bedrock. In the Meadowlands, that often means 60 to 80 feet of exploration to capture the full compressible layer sequence.

Q: Can a raft foundation handle Newark’s high water table?

Yes, but it must be designed for buoyancy. We include hydrostatic uplift calculations using the seasonal high groundwater level, and often specify an under-slab drainage layer or a thickened edge beam to counteract flotation during flood events.

Newark’s footprint straddles the Passaic River and the Meadowlands, where soft organic silts and historic fill can sink a standard footing before the building is even framed. You’re dealing with low bearing capacity, differential settlement, and groundwater less than six feet down in many parcels. A raft or mat foundation floats the structure across these weak zones, spreading load so the soil doesn’t punch through. The Port District and Ironbound redevelopments run into this constantly. We pair our geotechnical investigation with CPT testing to map the exact depth of the meadow mat and estimate consolidation settlement under sustained load—data you need before sizing the mat.

A raft foundation in the Meadowlands isn’t just a thick slab—it’s a settlement compensator that trades a little embedment for a lot of differential stiffness.

Our service areas

How we work

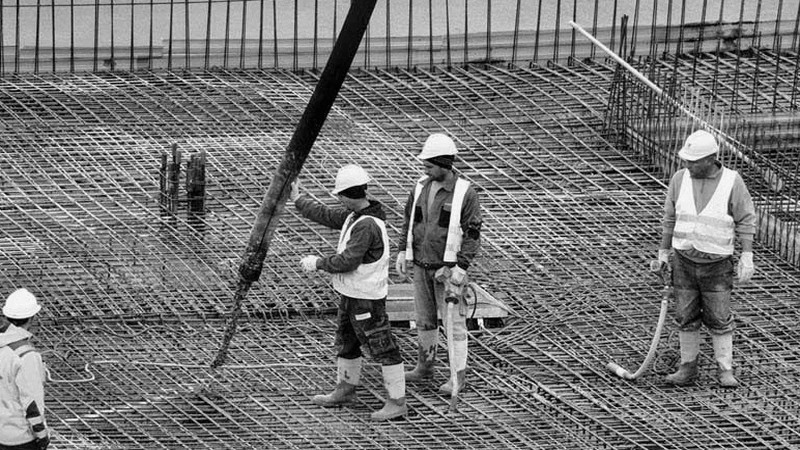

Out in the field, we still see engineers spec a mat thickness without running a modulus of subgrade reaction for the actual fill profile—that’s a costly gamble in Newark. We model the mat as a plate on an elastic foundation, iterating the k-value from plate load correlations and SPT blow counts, then check punching shear at column clusters. For sites near the Passaic, buoyancy control matters just as much as bearing; the mat has to resist hydrostatic uplift during a 100-year flood. Our analysis always includes cracked-section stiffness per ACI 318 and temperature steel requirements for the large pours that a mat demands. We also run a settlement sensitivity check if the client plans a tower crane pad on the same raft, which happens more often now with mid-rise mixed-use projects downtown.

Raft and Mat Foundation Design in Newark, NJ — Technical reference — Newark

Local geotechnical context

Newark’s industrial past left a lot of surprises underground—brick rubble, buried timber piles, old bulkheads along the river. Hit a pocket of uncompacted fill and the mat can dish, cracking partition walls six months after move-in. The bigger risk is long-term consolidation of the meadow mat; even with a raft, secondary compression in organic silt can drag a corner down half an inch over five years, enough to bind elevator rails. Then there’s liquefaction in the loose sand lenses found below the fill, which the USGS seismic hazard maps flag for the Newark Basin. We address that with densification or stone columns under the mat footprint if the cyclic stress ratio demands it.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.vip

Relevant standards

IBC 2021 (Newark adopted with NJ amendments), ASCE 7-22 Minimum Design Loads and Associated Criteria for Buildings and Other Structures, ACI 318-19 Building Code Requirements for Structural Concrete, ASTM D1586 Standard Test Method for Standard Penetration Test (SPT), ASTM D2487 Standard Practice for Classification of Soils for Engineering Purposes

Technical data

Parameter	Typical value
Bearing stratum	Glacial till, residual shale, or dense sand below fill
Typical allowable bearing pressure (SPT N=15–30)	2,000–4,000 psf (service-level)
Modulus of subgrade reaction (k)	50–150 pci (derived from plate load or SPT)
Design groundwater	3–7 ft below grade (seasonal)
Seismic site class (IBC)	Class E or F (soft clay/fill) per ASCE 7-22
Minimum mat thickness (rigid)	18–36 in, governed by shear and buoyancy
Maximum predicted settlement	< 1 in total, < 0.5 in differential (performance objective)

Common questions

What does a raft/mat foundation design cost in Newark?

For a typical mat foundation geotechnical evaluation in Newark—including two borings, lab testing, and the design report—the cost runs between US$970 and US$4,440, depending on mat area and the number of soil layers analyzed.

How deep do you investigate for a mat foundation in the Meadowlands?

We typically extend borings and CPT soundings to at least twice the mat width below the bearing elevation, or until we hit competent glacial till or bedrock. In the Meadowlands, that often means 60 to 80 feet of exploration to capture the full compressible layer sequence.

Can a raft foundation handle Newark’s high water table?

Yes, but it must be designed for buoyancy. We include hydrostatic uplift calculations using the seasonal high groundwater level, and often specify an under-slab drainage layer or a thickened edge beam to counteract flotation during flood events.
